Import/Export embroidery machine format:
|
 |
modular Basic software can read the following machine formats:
Software/Machine |
File |
Machine |
File |
| eXPerience™ |
.ngs |
Pfaff/KSM |
.ksm |
| Wings™ 2.x & 3.x |
.mls |
Compucon |
.xxx |
| Wings™ 2000 |
.mls |
Happy |
.tap |
| Tajima |
.dst |
Melco Expanded |
.exp |
| Tajima |
.dsz |
Melco Condensed |
.cnd |
| Tajima |
.dsb |
APS/DOS |
.stc |
| Sunstar (SWF) |
.sst |
APS/DOS |
.pch |
Brother/ Baby Lock/ Bernina
|
.pes |
Husqvarna |
.Hus |
| Brother/ Baby Lock/ Bernina |
.pec |
Husqvarna Viking |
.Vip |
| Jenome |
.Jef |
Juki |
.M3 |
| Jenome |
.sew |
|
|
NGS format: please note that you can save files in your hard disk in <.ngs> format; the main advantages are the following:
|
- only takes up 30% of the file space of a machine format such as Tajima.dst
- faster electronic transmission of designs via e-mail or the internet
- save notes and other information which will be lost if saved as a machine format
- files can be searched more easily and faster using database options
|
| |
| You can also save designs in the following formats: |
Software/Machine |
File |
Machine |
File |
| eXPerience™ 1.60 |
.ngs |
Pfaff/KSM |
.ksm |
| Wings™ 2000 |
.mls |
Happy |
.tap |
| Tajima |
.dst |
Melco Expanded |
.exp |
| Tajima |
.dsz |
Sunstar(SWF) |
.sst |
| Tajima |
.dsb |
Juki |
.M3 |
Brother/ Baby Lock/ Bernina
|
.pes |
Husqvarna |
.Hus |
| Brother/ Baby Lock/ Bernina |
.pec |
Husqvarna Viking |
.Vip |
| Jenome |
.Jef |
Jenome |
.sew |
|
|
|
Saving Parameters:
|
|
While writing or reading you can specify the following parameters. Which parameters will be active or not depends on the machine format. |
|
Designs |
| |
In this area you can see the names of the designs that are contained in the diskette. |
| |
|
| |
Split objects above distance |
| |
Using the following scroll bar you can set the distance above which the objects will be split. For your information, two parts of a design are treated as separate objects if they have a special function between them. This option is useful when you have a design without thread trims. Specifying a distance just higher than the longest stitch there is inside the design, automatically converts all the long stitches (movements between objects) to split objects. |
| |
|
| |
Convert all Stop functions to color changes |
| |
If you enable this option, modular will translate the Stop special function into a color change. |
| |
|
| |
Delete all Slow/Fast commands from design |
| |
If you enable this option, modular will delete any slow or fast commands the design may have. |
| |
|
| |
Cut is … jumpstitches |
| |
This option relates only to the Tajima machine format. With the following scroll bar, you have to specify how many jumpstitches will be translated as a cut. |
| |
|
| |
Read double stops |
| |
This option also relates only to the Tajima machine format in which there is no color change function. This type of machine uses the stop function as a color change. If you have two or more stops in a row (for example when embroidering appliques) modular will read them as a "Stop" function, not as two color changes. |
| |
|
| |
ZSK code Version |
| |
The following two commands work as radio buttons. They allow you to select one of the two commands depending on which type of ZSK machine version you are working with: |
| |
• |
OLD: Slow speed command
the old version of ZSK code uses Function 20 as a slow speed command; |
| |
• |
NEW: Sequin command
new versions of ZSK code use Function 20 as a Sequin command; |
| |
|
| |
Delete Design |
| |
With this button you can delete the selected designs on the Designs list. |
| |
|

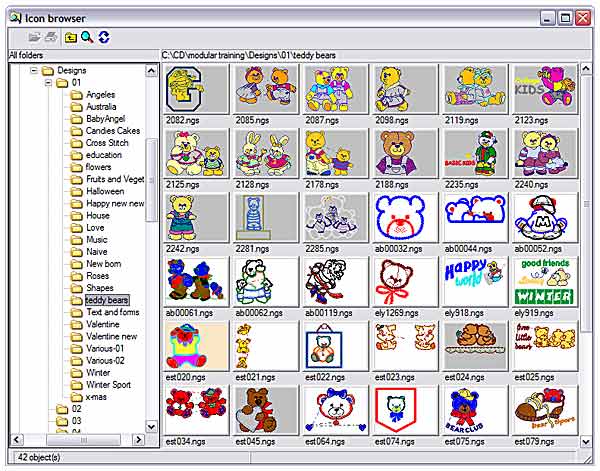

Icon Browser:
|
|
| |
This tool displays pictures of the existing designs in your hard disk and lets you decide easier the designs you want to load. |
| |
|
| |
The Icon Browser works like the Windows Explorer and it is a separate window inside modular software. This allows you to load the designs you need whilst the browser stays open and you can manage it as a normal window. |
| |
|
| |
Using the Browser you can: |
| |
• |
Select the designs. |
| |
• |
Load the selected designs |
| |
• |
Print the selected designs. |
| |
• |
Change the size of the icons. |
| |
• |
See the information of a design |
| |
• |
Delete one or more designs |
| |
• |
Move one or more designs into another folder |
| |
• |
Search the embroidery designs of your hard disk |
| |
 |
| |
|
Search in Browser:
|
|
With this option you can search for one or more designs in your hard disk or in a network disk.
The filters you can use are: |
| |
Design name |
| |
In this filter you can write a part of the name or exactly the name of the design you are searching for. |
| |
|
| |
Keyword |
| |
In this filter you can write one or more keywords that you have added in the Design info... or Save as dialogue. |
| |
|
| |
Stitches |
| |
In this filter you can specify the number of stitches of the shown designs. |
| |
|
| |
Customer |
| |
In this filter you can write a part of the name or exactly the name of the customer that you have added in the Design info... or Save as dialogue. |
| |
|
| |
Designer |
| |
In this filter you can write a part of the name or exactly the name of the designer that you have added in the Design info... or Save as dialogue. |
| |
|
| |
File date |
| |
In this filter you can specify the type of date that you are going to use for searching and the time period that you would like this time to be. |
| |
|
| |
Size |
| |
In this filter you can specify the limits of size of the shown designs. |
| |
|
| |
Start from folder |
| |
In this filter you can specify the directory in which modular will start searching for designs.
In order to change the searching folder you can use the “Browser” button.
You can also enable the following filter “Browse also subfolder” in order to search the subfolders of the selected folder, as well. |
| |
|
| |
Limit search to |
| |
In this field you can specify the maximum number of the designs shown after the search. |
| |
|
| |
