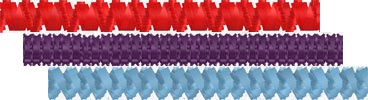

| Satin parameters for existing punching objects: |
 |
| |
| Style Selection: |
 |
| You can choose the style you want to use from a list of existing styles. |
| |
| |
| |
| The way and the position that the Style will be placed: |
| With this option you can specify the position that the Style will be placed: |
- First stitch: In this case the style will be on the first stitch of the satin. The second will be a normal one, the third with style, the fourth normal and so on.
- Both stitches: In this case the style will be on all the stitches of the satin.
- First+stretch: In this case the style will be only on the first stitch as before, but during scaling the style is not retained.
- Both+stretch: In this case the style will be on all the stitches, but during scaling the style is not retained.
|
| |

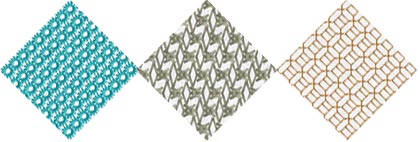

| Step parameters for existing punching objects: |
|
| |
| Style selection: |
| You can choose the style you want to use from a list of existing styles. For every style you have selected the program automatically changes the density and the stitch length of the step in order to show optimized the selected style. |
 |
| If the Style will be stretched or not: |
| The size of the style dependents on the stitch length that you have selected. The program changes the size of the style proportional. With this logical parameter you can specify if the height of the style will be proportional of its length or not. |
| |
| If the style will be clipped by following the shape of the step or not: |
| With this logical parameter you can specify the way that the styles will be on the edge of the step. |
| |
| Satin Serial parameters for existing punching objects: |
|
| |
|
| Style Selection: |
| You can choose the style you want to use from a list of existing styles. |
| |
| The way and the position that the Style will be placed: |
| With this option you can specify the position that the Style will be placed: |
- First stitch: In this case the style will be on the first stitch of the satin serial. The second will be a normal one, the third with style, the fourth normal and so on.
- Both stitches: In this case the style will be on all the stitches of the satin serial.
- First+stretch: In this case the style will be only on the first stitch as before, but during scaling the style is not retained.
- Both+stretch: In this case the style will be on all the stitches, but during scaling the style is not retained.
|
 |
| Zig Zag parameters for existing punching objects: |
|
| |
| Style Selection: |
| You can choose the style you want to use from a list of existing styles. |
| |
| The way and the position that the Style will be placed: |
| With this option you can specify the position that the Style will be placed: |
- First stitch: In this case the style will be on the first stitch of the Zig-Zag. The second will be a normal one, the third with style, the fourth normal and so on.
- Both stitches: In this case the style will be on all the stitches of the Zig-Zag.
- First+stretch: In this case the style will be only on the first stitch as before, but during scaling the style is not retained.
- Both+stretch: In this case the style will be on all the stitches, but during scaling the style is not retained.
|
| |

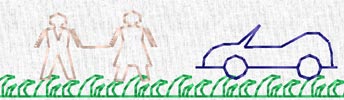

| Running parameters for existing punching objects: |
|
| |
| Style Selection: |
| You can choose the type of style you want to use from a list of existing styles. |
| |
| Incline - Specifies if the styles will be placed will have constant length or not: |
| This parameter is very important when you want to punch a drawing that is very small in actual size.In any new punching object that you add (or in the selected object), the program can keep the same stitch length or change the stitch length while following the outline. |
| |
| Frames - Specifies the way that the style will be repeated: |
| This parameter configures the way that film type styles can be applied. You can set to be repeated only the middle styles of the film or all of them in a raw without omitting anyone. |
 |
| Manual parameters for existing punching objects: |
|
| |
| Style Selection: |
| You can choose the type of style you want to use from a list of existing styles. In manual stitch type the size of the style, depend on the distance between the points (nodes) that you punched. |
| |
| Piping parameters for existing punching objects: |
|
| |
| Style Selection: |
| You can choose the style you want to use from a list of existing styles. |
| |
